Architecture and Internal Design of the Cardpeek Smart Card Analysis Platform
Core Purpose of Cardpeek
Cardpeek is an open source smart card inspection and reverse engineering platform designed for low level interaction with chip based cards and secure elements. The application focuses on transparent communication with ISO 7816 compatible devices while exposing the internal structure of smart card file systems, application directories, transaction records, and encoded data objects.
Unlike commercial forensic suites that abstract most internal processes away from the operator, Cardpeek intentionally exposes the communication layer. This makes the software especially valuable for researchers, payment system analysts, embedded engineers, hardware developers, and security specialists working with APDU based infrastructures.
The program became widely known because it combined a graphical interface with a highly scriptable backend. Instead of functioning as a rigid card reader utility, Cardpeek evolved into a flexible smart card analysis framework capable of adapting to many unrelated technologies through Lua based extensions.
The software is capable of working with banking cards, SIM modules, transport tickets, secure authentication tokens, JavaCard environments, identity documents, and proprietary embedded card systems. The architecture was designed in a way that separates transport communication, parsing logic, visualization, and protocol interpretation into independent layers.
This modular approach is one of the reasons the project remained relevant for years despite rapid changes in payment technologies and smart card ecosystems.
Communication Layer and PC/SC Integration
At the lowest level Cardpeek communicates with physical card readers through the PC/SC subsystem. The application itself does not implement hardware drivers. Instead, it relies on the operating system smart card stack to establish communication sessions.
Under Linux the software commonly works through pcsc lite. On Windows it interfaces with WinSCard APIs, while macOS uses its own PCSC framework implementation. This decision allows Cardpeek to remain portable across platforms while avoiding direct dependency on vendor specific hardware implementations.
When a card is inserted into a reader the communication engine initializes a session and negotiates the protocol supported by the card. During this stage the software retrieves the ATR, also known as Answer To Reset. The ATR acts as the identity and capability descriptor of the smart card.
The ATR parser inside Cardpeek analyzes timing parameters, supported transmission protocols, voltage classes, and historical bytes. The parser attempts to identify the card family automatically by comparing ATR structures against internal recognition patterns.
This stage is extremely important because it determines how further APDU communication will be performed. Different cards may operate under T=0 or T=1 protocols, use proprietary initialization behavior, or require vendor specific command sequences before exposing their file systems.
Instead of hiding these details, Cardpeek exposes the raw ATR data directly inside the interface, allowing engineers to inspect every transmitted byte.
APDU Engine and Command Processing
The heart of Cardpeek is its APDU processing subsystem. Smart cards communicate through Application Protocol Data Units, commonly known as APDUs. These command structures define nearly all interactions between terminals and secure elements.
Cardpeek includes a fully implemented APDU transmission engine capable of constructing commands, handling variable length payloads, processing response status words, and managing communication state transitions.
The software supports both standard ISO 7816 instructions and proprietary vendor specific command sets. During analysis sessions every transmitted APDU is logged and displayed in chronological order. This creates a transparent execution trace that can later be studied for debugging or reverse engineering purposes.
One of the strengths of Cardpeek lies in the way it visualizes command execution. Instead of merely showing hexadecimal streams, the application attempts to interpret command semantics whenever possible. File selections, record reads, authentication requests, and transaction operations become human readable objects inside the interface.
The APDU engine also manages error handling logic. Smart cards often respond with status words indicating retries, missing authentication, invalid parameters, or partial data availability. Cardpeek interprets many of these conditions automatically and can issue additional commands when necessary.
For researchers working with EMV payment cards this behavior becomes especially useful because payment applications frequently rely on chained commands and dynamic response retrieval sequences.
File System Representation
Most smart cards implement hierarchical file systems inspired by early telecom and security architectures. Cardpeek models these structures visually through a tree based representation system.
The root of the hierarchy is typically the Master File. Under it reside Dedicated Files and Elementary Files that contain records, binary objects, or structured application data. The software dynamically builds the visible structure while navigating through the card.
Instead of presenting raw sectors or memory dumps, Cardpeek interprets the logical organization of the card environment. This makes analysis significantly easier when dealing with complex systems such as GSM SIM cards or EMV banking applications.
The navigation engine internally tracks file identifiers, parent relationships, application contexts, and current selection state. This allows users to move through the card almost as if browsing a conventional operating system file hierarchy.
Many proprietary cards partially hide their structures behind undocumented commands or protected directories. Cardpeek does not magically bypass these restrictions, but it provides researchers with the tools required to explore accessible areas methodically.
Because every selection request and response remains visible, analysts can reconstruct undocumented layouts manually when necessary.
Lua Scripting Architecture
One of the most important architectural decisions behind Cardpeek was the integration of the Lua scripting engine. Nearly all high level card interpretation logic is implemented through scripts rather than native compiled code.
This design transformed Cardpeek from a static application into a programmable analysis platform.
The Lua subsystem operates as an interpretation layer between the raw communication engine and the graphical interface. Scripts can access APDU responses, construct protocol specific parsers, build visualization trees, decode binary structures, and dynamically generate new analysis views.
The advantage of this approach becomes obvious when dealing with proprietary card systems. Instead of modifying the core source code, researchers can simply write new scripts describing how unknown records should be interpreted.
For example, one script may decode EMV transaction structures while another parses telecom authentication records or transport ticket metadata. The communication engine itself remains unchanged.
Lua also improves maintainability and reduces the risk associated with memory unsafe parsing logic. Since most complex interpretation happens inside the scripting environment, parser development becomes significantly safer and faster compared to native implementations in C.
Another important advantage is rapid experimentation. Researchers often encounter undocumented card structures where field meanings must be inferred gradually. Lua allows quick parser adjustments without recompilation cycles.
Over time the Cardpeek ecosystem accumulated a large collection of reusable scripts capable of supporting many different smart card technologies.
TLV Parsing and Data Interpretation
Modern smart card ecosystems rely heavily on TLV encoding. The Tag Length Value model provides a flexible mechanism for representing structured binary data while supporting nested containers and variable field sizes.
Cardpeek implements a recursive TLV interpretation engine capable of parsing BER TLV structures commonly used in EMV payment systems and secure authentication protocols.
The parser treats each object as a hierarchical node containing metadata about its tag identifier, encoded length, raw value, and child elements. Constructed tags automatically expand into nested trees, allowing the graphical interface to represent complex protocol structures visually.
This recursive architecture is critical because many payment applications embed multiple layers of nested financial data objects inside a single APDU response.
Instead of forcing users to decode these structures manually, Cardpeek automatically expands them into readable representations. Transaction counters, application identifiers, expiration dates, issuer certificates, cryptographic descriptors, and authentication capabilities become immediately accessible.
The TLV subsystem is intentionally generic. It was designed not only for EMV cards but also for transport systems, telecom infrastructures, identity documents, and proprietary smart card ecosystems that rely on BER style encoding models.
Because the parsing engine remains independent from protocol specific scripts, the same architecture can interpret vastly different card technologies with minimal modification.
EMV Payment Card Analysis
One of the most sophisticated areas supported by Cardpeek is EMV payment card analysis. EMV infrastructure is extremely complex because it combines hierarchical applications, cryptographic validation mechanisms, transaction state machines, terminal risk management, and issuer authentication protocols.
Cardpeek approaches EMV analysis from the perspective of transparency. Instead of reducing card communication to simplified summaries, the software exposes the actual protocol flow occurring between the terminal and the payment application.
When an EMV card is inserted, the software begins by enumerating available applications through directory selection procedures. Each discovered AID can then be analyzed independently. Cardpeek retrieves processing options, application file locators, transaction records, capability descriptors, and security related metadata.
The software automatically interprets many well known EMV tags and displays them in readable form. This includes card numbers, expiration dates, issuer country codes, transaction counters, application labels, and cryptographic capability flags.
An important architectural detail is that Cardpeek separates transport communication from semantic interpretation. The APDU layer merely exchanges data, while higher level Lua scripts interpret EMV semantics and construct human readable structures.
This separation greatly improves extensibility because new EMV tags or vendor specific extensions can be added without touching the communication engine itself.
The transaction log extraction subsystem is especially useful for payment system researchers. Many EMV cards maintain internal transaction histories containing timestamps, counters, terminal identifiers, and transaction types. Cardpeek can decode these records and present them in structured form.
The software also exposes cryptographic metadata used during authorization procedures. While secure keys themselves remain inaccessible due to hardware security protections, the surrounding structures reveal valuable information about application configuration and risk management logic.
For educational environments Cardpeek became one of the most accessible ways to study real world EMV behavior outside expensive commercial payment laboratories.
SIM and USIM Card Inspection
Another major capability of Cardpeek is GSM and mobile network card analysis. SIM and USIM environments rely heavily on structured file systems defined by telecom standards, making them ideal targets for Cardpeek’s hierarchical browsing model.
The application can navigate through telecom dedicated files and decode many common elementary files automatically. Information such as ICCID values, IMSI identifiers, network preferences, SMS storage structures, service provider descriptors, and phonebook entries can often be interpreted directly.
Unlike simplistic SIM reading tools that focus only on extracting contacts or text messages, Cardpeek exposes the broader architecture of telecom cards. Researchers can observe how authentication parameters, roaming configurations, and application services are represented internally.
The software also reveals how telecom cards evolved over time. Older GSM SIM implementations often rely on simpler structures and weaker security assumptions, while modern USIM environments introduce more advanced application isolation and cryptographic protection mechanisms.
Because the parser architecture remains modular, researchers can extend support for proprietary telecom applications using Lua scripts. This capability became useful when analyzing carrier specific extensions or regional implementations not covered by default decoders.
The telecom subsystem also demonstrates the flexibility of Cardpeek’s architecture. Banking cards and SIM cards belong to entirely different ecosystems, yet both can be analyzed using the same underlying transport and visualization framework.
This architectural consistency is one of the strongest aspects of the project.

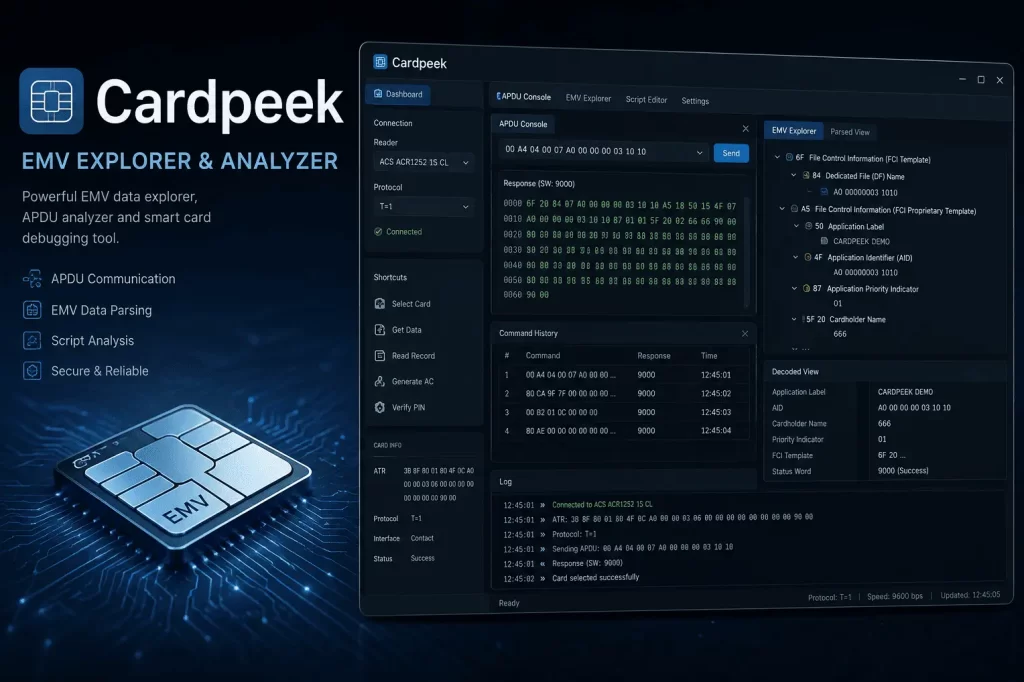

Graphical Interface Design
Although Cardpeek is fundamentally a technical analysis tool, considerable effort was invested into the graphical interface architecture. The interface was designed not for casual users but for engineers who need direct access to protocol internals without unnecessary abstraction.
The GUI is built around several synchronized panels that represent different layers of card interaction simultaneously.
The card tree viewer acts as the primary navigation component. It displays hierarchical file structures, application directories, decoded records, and parsed TLV objects. Selecting an element automatically updates the hexadecimal visualization and metadata panels.
The APDU console records every communication exchange between the host and the card. This console is particularly valuable during reverse engineering because it allows analysts to correlate interface operations with underlying protocol activity.
The hexadecimal viewer provides low level binary inspection capabilities. Instead of relying exclusively on interpreted structures, researchers can always inspect the original raw payloads. This is critical when validating parser correctness or investigating undocumented fields.
The scripting output window enables Lua modules to generate custom diagnostic information dynamically. Scripts can create additional nodes, display interpreted values, or issue warnings about unexpected structures.
Cardpeek intentionally avoids excessive graphical complexity. The interface remains lightweight, fast, and highly functional even on older systems. This simplicity reflects the engineering oriented philosophy behind the project.
Rather than behaving like a consumer application, Cardpeek behaves more like a laboratory instrument.
Internal Object Model
Internally Cardpeek organizes parsed information through a dynamic object hierarchy. Every discovered entity inside the card environment becomes an object containing metadata, binary payloads, parser associations, and visualization attributes.
This abstraction layer allows the graphical interface to remain independent from protocol specific logic. A banking application record, a telecom authentication structure, or a transport ticket object can all be represented through the same internal node model.
Each node may contain:
raw binary data
decoded textual representations
nested child objects
parser references
state metadata
associated APDU history
Because the visualization system operates on generic nodes, new protocols can be integrated easily without redesigning the interface.
The internal object model also simplifies scripting. Lua modules can manipulate nodes directly, create virtual objects, attach interpretation metadata, or dynamically reorganize structures depending on parsing results.
This architecture resembles plugin driven reverse engineering frameworks more than conventional smart card utilities.
Security Research Applications
Cardpeek gained popularity inside security research communities because it significantly lowers the barrier for studying smart card ecosystems.
Many hardware security systems rely on undocumented command flows and proprietary data structures. Reverse engineering such environments manually is extremely time consuming when using only raw APDU consoles.
Cardpeek accelerates this process by combining transport visibility, structured visualization, and rapid parser customization.
Researchers commonly use the software to:
study payment card behavior
analyze transport ticket architectures
inspect identity document structures
understand telecom authentication models
test JavaCard applications
explore proprietary embedded secure elements
The software is particularly valuable during protocol reconnaissance phases where the goal is understanding system architecture rather than exploiting vulnerabilities.
Because every communication exchange remains visible, analysts can reconstruct operational workflows step by step. Even partial parser support often provides enough visibility to identify hidden structures and application relationships.
At the same time Cardpeek itself does not bypass cryptographic protections or hardware isolation boundaries. The software operates within the permissions granted by the card and reader infrastructure.
This distinction is important because Cardpeek functions primarily as an analysis environment rather than an exploitation toolkit.
JavaCard and Application Containers
Modern smart cards frequently support JavaCard environments where multiple isolated applications coexist on the same chip. Cardpeek includes partial support for interacting with such systems through APDU based exploration techniques.
JavaCard environments are significantly more complicated than traditional fixed file systems because applications may expose custom command interfaces and proprietary object structures.
Cardpeek handles this challenge by remaining protocol agnostic at the transport layer. As long as communication occurs through standard APDU mechanisms, the software can observe and record exchanges regardless of higher level application semantics.
Researchers analyzing JavaCard environments often rely heavily on custom Lua scripts to decode proprietary application responses. The flexibility of the scripting engine becomes essential in such scenarios because fixed parsers would be insufficient for undocumented ecosystems.
The ability to adapt dynamically is one of the reasons Cardpeek remained useful even as smart card technology evolved beyond classical telecom and payment systems.
Transport Card and Ticketing System Analysis
Beyond banking and telecom infrastructures, Cardpeek also became useful for analyzing transport ticketing systems built on smart card technology. Many metropolitan transit networks rely on contactless cards that internally store balances, subscriptions, trip histories, validation counters, and issuer metadata.
These systems often combine standardized transport frameworks with proprietary extensions developed by local operators. As a result, reverse engineering transport cards requires a flexible inspection platform capable of adapting to partially documented structures.
Cardpeek proved effective in this area because of its layered architecture. The transport communication layer remains identical regardless of whether the card belongs to a payment system or a subway network. Only the interpretation logic changes.
Researchers can inspect application identifiers, transaction logs, validation timestamps, route information, and reload counters by constructing protocol specific Lua decoders. Since many transport systems rely on BER TLV encoding or structured record layouts, the generic parsing engine integrates naturally with ticketing environments.
Another advantage is that Cardpeek allows analysts to observe how different transport authorities design secure transaction models. Some systems prioritize offline validation speed, while others focus heavily on cryptographic verification and anti cloning mechanisms.
By examining APDU exchanges and internal file structures, researchers can study how transport infrastructures balance performance, storage constraints, and security requirements inside highly resource constrained smart card hardware.
This area became particularly interesting as cities increasingly migrated from magnetic tickets to secure contactless platforms.
Memory Management and Binary Data Handling
Internally Cardpeek operates with a binary oriented architecture designed for low level protocol analysis. Nearly all interactions involve structured byte streams rather than high level application objects.
The software therefore includes dedicated mechanisms for managing buffers, parsing offsets, encoding transformations, and recursive object construction.
One important architectural challenge involves handling nested data structures efficiently while preserving the original binary payloads. Cardpeek solves this by separating raw storage from interpreted representations.
The original data remains intact inside internal buffers while parser layers generate supplementary metadata describing semantic meaning. This dual representation approach is extremely important during reverse engineering because incorrect parsers can always be validated against untouched source data.
The hexadecimal viewer operates directly on these preserved buffers, allowing analysts to verify every interpreted field manually.
Another technical challenge involves variable length structures. Smart card protocols frequently use compact encoding schemes where field lengths, tag identifiers, or record boundaries are determined dynamically during parsing.
Cardpeek addresses this through recursive parsing logic capable of interpreting nested containers incrementally. The parser state machine continuously tracks offsets, expected lengths, constructed objects, and termination conditions while building visualization trees.
Although the software was not designed as a high performance forensic engine, its memory architecture remains efficient enough for complex EMV applications and deeply nested TLV environments.
Plugin Style Extensibility
Even though Cardpeek does not implement a modern plugin framework in the traditional sense, its Lua subsystem effectively behaves as one.
Scripts can introduce entirely new protocol handlers without altering the native core. This creates a semi modular ecosystem where support for additional technologies evolves independently from the underlying transport engine.
In practice this means the application can adapt to emerging card ecosystems long after the original binary was compiled.
The extensibility model also encourages experimentation. Researchers may prototype incomplete parsers, test undocumented command sequences, or implement custom visualization logic rapidly without rebuilding the application.
This flexibility became especially important in communities focused on reverse engineering proprietary systems. Different researchers often maintained independent script collections targeting regional transport cards, national identity systems, or industry specific authentication tokens.
Because Cardpeek exposes low level APDU functionality directly, scripts are not limited to passive parsing. They can actively communicate with the card, perform iterative probing operations, enumerate applications, or construct dynamic analysis workflows.
In many ways the software resembles a lightweight programmable smart card laboratory environment.
Cross Platform Design Philosophy
A notable aspect of Cardpeek is its consistent behavior across operating systems. Smart card tooling historically suffered from fragmentation because different platforms implemented incompatible reader APIs and driver models.
By building the communication layer around PC/SC abstractions, Cardpeek achieved relatively stable cross platform operation without maintaining separate protocol stacks for each environment.
The software behaves similarly under Linux, Windows, and macOS because most platform specific complexity is delegated to the operating system smart card infrastructure.
This design decision simplified maintenance considerably. The Cardpeek core focuses primarily on protocol interpretation and visualization rather than hardware compatibility management.
Cross platform consistency also improved script portability. Lua decoders written on one system generally function identically on another because the scripting environment remains isolated from platform specific transport details.
For researchers working in heterogeneous environments this portability became highly valuable.
Cryptographic Structures and Security Metadata
Although Cardpeek cannot extract secure cryptographic keys from properly protected hardware, the software exposes large amounts of metadata surrounding cryptographic operations.
Modern smart cards depend heavily on certificates, authentication descriptors, issuer data objects, transaction counters, challenge response mechanisms, and security capability indicators.
Cardpeek allows analysts to inspect these surrounding structures in detail.
Within EMV environments the software can reveal application cryptogram metadata, issuer authentication fields, certificate hierarchies, and card verification method configurations.
Inside telecom systems researchers may observe authentication algorithms, service authorization structures, or network capability descriptors.
The software therefore occupies an interesting position within the smart card ecosystem. It does not defeat hardware security directly, but it significantly improves visibility into how secure systems are architected internally.
This visibility is extremely valuable during protocol auditing and educational research.
Understanding how cryptographic infrastructures are organized often matters as much as the cryptographic algorithms themselves.
Reverse Engineering Workflow
Cardpeek naturally fits into a broader reverse engineering methodology used by hardware and protocol analysts.
The process often begins with ATR inspection and application enumeration. Researchers identify visible applications, supported protocols, and accessible directories.
Next comes systematic APDU exploration. Analysts issue selection commands, retrieve records, inspect response codes, and identify repeating structures.
Once recurring patterns emerge, Lua scripts can be written to formalize interpretation logic. Unknown byte sequences gradually become structured objects with semantic meaning.
Cardpeek accelerates this cycle dramatically because parsing logic can evolve interactively during live sessions.
Instead of repeatedly exporting raw dumps into external tools, researchers can build integrated decoders directly inside the analysis environment.
The visualization system further improves efficiency by presenting hierarchical relationships automatically. Nested structures that would otherwise appear as opaque hexadecimal streams become navigable trees.
For complex protocols this reduction in cognitive overhead is extremely important.
Limitations of the Platform
Despite its flexibility, Cardpeek also has important limitations.
The software was never intended to compete with specialized commercial forensic laboratories or full hardware emulation environments. Certain advanced capabilities remain outside its design scope.
For example, Cardpeek does not perform electrical signal analysis, side channel attacks, fault injection, timing exploitation, or low level chip emulation. It operates strictly at the logical communication layer exposed through smart card readers.
The project also depends heavily on the quality of available Lua scripts. Unsupported proprietary systems may initially appear as opaque binary structures until researchers implement suitable decoders.
Another limitation involves modern secure elements that increasingly isolate sensitive operations behind restricted interfaces. Many contemporary cards expose far less internal information compared to earlier generations of smart card technology.
Nevertheless, Cardpeek remains highly effective for protocol exploration, educational analysis, and structured inspection of accessible smart card environments.
Its strength lies not in bypassing protections, but in making complex architectures understandable.
Role in Smart Card Education
Over time Cardpeek became widely appreciated as a teaching and learning platform.
Smart card systems are notoriously difficult for beginners because they combine low level communication protocols, binary encoding schemes, hierarchical file systems, cryptographic infrastructures, and application specific standards.
Most educational resources explain these concepts abstractly without providing visibility into real card behavior.
Cardpeek bridges this gap by exposing live communication sessions directly.
Students can observe actual APDU exchanges, inspect real transaction records, decode TLV structures, and navigate authentic card file systems interactively.
This practical visibility dramatically improves understanding of how smart card ecosystems operate internally.
The software effectively transforms abstract protocol specifications into observable engineering systems.
Internal Parsing Logic and Recursive Analysis
One of the technically interesting aspects of Cardpeek is the way its parsing engine handles recursive object interpretation. Smart card environments rarely contain flat data layouts. Most modern implementations rely on nested structures where one object contains multiple subordinate containers, each with its own encoding rules and contextual meaning.
Cardpeek approaches this problem through layered recursive traversal mechanisms.
When binary data is received from the card, the parser does not immediately attempt full semantic interpretation. Instead, the engine progressively identifies structural boundaries first. Tags are recognized, lengths are extracted, and container hierarchies are established before deeper decoding begins.
This architecture improves reliability because structural reconstruction remains separated from semantic assumptions.
For example, an EMV response may contain multiple constructed tags nested several levels deep. Each level may represent application templates, processing options, issuer scripts, or transaction descriptors. Cardpeek builds these relationships incrementally while preserving the original binary stream.
The parser then attaches metadata to each discovered node. Human readable labels, protocol specific meanings, value conversions, and contextual descriptions are added afterward through Lua interpretation layers.
This distinction between structural parsing and semantic annotation is extremely important in reverse engineering environments where field meanings are often uncertain.
Researchers can therefore explore partially understood protocols without breaking the integrity of the overall parse tree.
Smart Card Protocol Abstraction
Another architectural strength of Cardpeek is protocol abstraction. The software does not hardcode assumptions about banking systems, telecom applications, or transport infrastructures into the communication core.
Instead, the transport layer operates on generalized APDU exchanges while higher level modules decide how responses should be interpreted.
This abstraction model allows radically different smart card ecosystems to coexist inside the same framework.
A SIM card authentication record, a banking transaction log, and a transport validation counter may all appear completely different semantically, yet from the transport engine perspective they are simply APDU responses carrying structured binary data.
This philosophy dramatically simplified long term extensibility.
As new smart card technologies emerged, Cardpeek could support them without redesigning its internal communication mechanisms. Only parser scripts and interpretation modules needed adaptation.
The same architecture later proved useful when contactless smart card systems became widespread. Although underlying radio communication protocols differed, many higher level application structures still relied on APDU compatible interaction models.
Cardpeek therefore remained relevant even as smart card ecosystems evolved beyond traditional contact based cards.
Hexadecimal Visualization System
A major part of Cardpeek’s usability comes from its hexadecimal inspection subsystem.
Many smart card tools focus excessively on interpreted views while hiding the original binary representation. Cardpeek deliberately avoids this mistake. Every decoded structure remains directly linked to its raw byte level source.
The hexadecimal viewer synchronizes with parser nodes dynamically. Selecting a structured object inside the navigation tree automatically highlights the corresponding bytes within the raw payload.
This feature becomes invaluable during reverse engineering because analysts constantly need to validate parser correctness.
If a field appears suspicious or incorrectly decoded, researchers can inspect the underlying binary data immediately without exporting buffers into external tools.
The viewer also assists when working with partially documented systems. Unknown byte ranges can be identified visually, compared across transactions, and correlated with protocol behavior.
Another important aspect is endian awareness and binary formatting flexibility. Smart card environments frequently use compact encodings, BCD representations, packed timestamps, or custom numeric formats.
Cardpeek provides enough low level visibility for analysts to reconstruct these encoding models manually when automatic decoders are unavailable.
This emphasis on binary transparency reflects the engineering oriented philosophy behind the entire project.
Logging and Session Reconstruction
Cardpeek maintains detailed communication logs throughout analysis sessions.
Every APDU command, response payload, status word, parser event, and script generated output can be preserved for later inspection. This capability is essential during complex protocol investigations where patterns only become visible after long sequences of interactions.
The logging subsystem effectively transforms transient smart card communication into reproducible research material.
Researchers often compare multiple sessions side by side in order to identify state dependent behavior. Certain applications expose different structures depending on transaction history, authentication state, issuer configuration, or environmental conditions.
Without persistent logs such differences become difficult to analyze systematically.
Cardpeek’s session history also simplifies collaborative research. Analysts can share command traces and parser outputs with others without requiring direct access to the physical card.
This became particularly useful in open source reverse engineering communities where geographically distributed researchers cooperated on undocumented smart card systems.
Instead of exchanging vague observations, they could exchange precise APDU histories and reconstructed parse trees.
Handling Proprietary Applications
Many real world smart cards contain proprietary applications with undocumented structures and custom command sets.
Cardpeek was never limited exclusively to officially standardized systems. In practice, one of its most valuable uses involves exploratory analysis of unknown card environments.
When dealing with proprietary applications, researchers typically begin by enumerating selectable directories and observing status code behavior. Different APDU sequences are tested systematically to identify accessible objects and response patterns.
Cardpeek provides an ideal environment for this style of iterative exploration because every operation remains visible and scriptable.
Once recurring structures appear, analysts can gradually construct Lua decoders that transform opaque byte streams into meaningful representations.
The process is often incremental. Early parsers may only identify field boundaries, while later versions attach semantic interpretation to discovered structures.
This workflow mirrors traditional reverse engineering practices used in binary analysis and network protocol research.
The difference is that Cardpeek applies these principles specifically to smart card ecosystems.
Contactless Smart Card Support
Although Cardpeek originally focused heavily on ISO 7816 contact cards, many modern readers expose contactless interfaces through compatible PC/SC abstractions.
As a result, the software can also interact with numerous RFID based systems whenever the reader and driver stack expose APDU compatible communication channels.
This expanded the range of analyzable devices significantly.
Transport passes, NFC enabled payment cards, secure authentication badges, and hybrid smart card systems increasingly became accessible through the same analytical framework.
The underlying architecture required relatively few changes because the logical communication model remained largely consistent.
From Cardpeek’s perspective, whether the APDU exchange travels over direct electrical contacts or through a contactless radio interface matters less than the structure of the application protocol itself.
This protocol centric design philosophy contributed heavily to the longevity of the project.
Role in Payment Security Research
Within payment security communities Cardpeek gained a reputation as a practical inspection and educational tool rather than an offensive exploitation framework.
Researchers frequently used the software to study how payment applications organize transaction flows, issuer authentication procedures, and terminal interaction models.
Because EMV ecosystems involve large amounts of structured metadata, Cardpeek’s visualization capabilities became particularly valuable.
Analysts could inspect application interchange profiles, cardholder verification methods, risk management flags, transaction counters, and certificate chains directly from real cards.
The software also helped demonstrate how payment systems evolved historically.
Older EMV implementations often exposed significantly more accessible metadata than newer generations designed with stronger privacy and anti profiling considerations.
By comparing different card generations researchers could observe how payment architectures adapted to emerging security requirements over time.
Cardpeek therefore became not only a technical tool but also a historical lens into the evolution of financial smart card systems.
Open Source Ecosystem and Community Contributions
The open source nature of Cardpeek played a major role in its development trajectory.
Because the parser architecture relied heavily on scripts, community members could contribute protocol support independently without needing deep familiarity with the core codebase.
This decentralized contribution model accelerated expansion into niche ecosystems.
Researchers working on transport systems, telecom infrastructures, regional banking networks, or national identity projects could publish specialized scripts targeting their areas of expertise.
Over time the project accumulated support for a surprisingly diverse collection of smart card technologies.
The openness of the architecture also improved transparency. Analysts could inspect exactly how parsers interpreted sensitive structures instead of relying on opaque proprietary decoding logic.
For educational environments this transparency was particularly important because students could study not only smart card protocols themselves but also the parser implementations used to decode them.
In many ways the Cardpeek ecosystem became both a technical platform and a collaborative knowledge repository for smart card analysis.
Performance Characteristics and Runtime Behavior
Cardpeek is not designed as a high throughput processing engine, yet its runtime behavior is optimized for interactive analysis sessions where clarity and responsiveness matter more than raw speed.
Smart card communication itself is inherently slow compared to modern computing systems. APDU exchanges are limited by hardware latency, protocol timing constraints, and secure element processing delays. Because of this, Cardpeek’s performance bottleneck is almost never CPU computation but physical card interaction.
The internal architecture reflects this reality. Most operations are event driven rather than continuously computed. When a response arrives from a card reader, it triggers parsing routines, Lua script execution, and GUI updates in a tightly controlled sequence.
Memory usage is generally stable because Cardpeek does not attempt to aggressively cache entire card dumps in multiple redundant formats. Instead, it maintains a structured representation where raw buffers and interpreted nodes coexist in a single hierarchical model.
This approach prevents unnecessary duplication of large binary objects while still allowing full inspection at any level of abstraction.
Lua execution overhead is also kept minimal. Scripts are executed only when required by parsing events or user navigation actions. This avoids continuous background processing and keeps system resource usage low even when analyzing complex EMV or SIM structures.
Overall, the runtime model is optimized for exploratory workflows rather than batch processing or large scale forensic extraction.
Error Handling and Protocol Robustness
Smart card environments are highly state dependent, and communication failures are common. Cards may respond with status words indicating conditions such as invalid commands, authentication requirements, file not found states, or temporary processing errors.
Cardpeek incorporates a structured error handling system that interprets these responses without interrupting the analysis session.
Instead of treating errors as fatal conditions, the software categorizes them into meaningful protocol states. Many APDU responses that would normally appear as failures are interpreted as part of expected card behavior.
For example, certain EMV applications intentionally return specific status codes to indicate that additional data retrieval steps are required. Cardpeek recognizes these patterns and continues the logical flow when possible.
Lua scripts also contribute to error resilience. Script authors can define fallback behaviors, conditional parsing rules, or alternative interpretation paths when expected structures are missing.
This flexibility is particularly important when dealing with partially documented or proprietary systems where incomplete understanding is common.
As a result, Cardpeek behaves more like an adaptive analysis environment than a strict command execution tool.
Dynamic Tree Construction Model
The visualization system in Cardpeek is based on a dynamic tree construction model that evolves in real time during analysis.
Unlike static file explorers, the structure of the tree is not fully defined at startup. Instead, nodes are created progressively as new data is retrieved from the card and interpreted by parsing layers.
Each node in the tree represents a logical object derived from raw binary data. These objects may correspond to files, records, EMV tags, SIM elements, or entirely synthetic constructs generated by Lua scripts.
This dynamic nature allows the interface to reflect the actual state of the card at any given moment rather than a predefined schema.
Nodes can also be modified after creation. Lua scripts may attach additional children, restructure hierarchies, or replace interpretations as more information becomes available.
This flexibility is essential for reverse engineering workflows where initial assumptions about data structures may change frequently during analysis.
The tree model therefore acts as both a visualization layer and an evolving interpretation framework.
Abstraction of Card Applications
Modern smart cards frequently host multiple applications within a single secure environment. Each application may have its own file system, security policies, and command set.
Cardpeek abstracts these applications into a unified representation model while preserving their logical separation.
When an application is selected, the software isolates its context and exposes only relevant file structures and communication pathways.
This prevents cross application confusion and allows analysts to focus on one logical domain at a time.
However, Cardpeek still preserves global awareness of all detected applications on the card. This is important in environments such as EMV where multiple payment applications may coexist, or in telecom systems where different service profiles are stored simultaneously.
The abstraction model balances isolation and global visibility, which is crucial for understanding multi application smart card ecosystems.
Script Driven Interpretation Layer
The Lua based interpretation layer functions as the semantic brain of Cardpeek.
While the core engine handles communication and structure detection, Lua scripts define meaning.
This separation allows the same raw APDU data to be interpreted in radically different ways depending on the active script.
For instance, a sequence of bytes might represent a transaction counter in an EMV context, a service flag in a telecom environment, or a configuration parameter in a proprietary system.
The interpretation layer resolves these ambiguities based on context provided by scripts.
Scripts can also define conditional parsing rules. Certain structures may only be decoded if specific tags or identifiers are present. Others may require multi step resolution involving multiple APDU exchanges.
This makes the system highly adaptable but also dependent on script quality and completeness.
In essence, Cardpeek provides the infrastructure, while Lua defines intelligence.
Data Integrity and Non Destructive Analysis
A key design principle of Cardpeek is non destructive analysis. The software never modifies card data during inspection sessions unless explicitly instructed through specific APDU write commands.
By default all operations are read oriented, ensuring that analysis does not alter the state of the smart card.
This is critical in environments where cards represent financial value, identity credentials, or secure authentication tokens.
Even when write capable commands are used, Cardpeek does not abstract or simplify their effects. Every modification request is logged and displayed at the APDU level, ensuring full transparency.
The system also preserves original response payloads exactly as received from the card. Parsing and interpretation layers operate on copies or references rather than altering raw buffers.
This guarantees that any analytical result can be traced back to the exact binary source data at any time.
Evolution of Smart Card Technologies and Cardpeek Adaptability
Over time smart card technology has evolved significantly, moving from simple file based systems to complex secure execution environments with cryptographic isolation and multi application architectures.
Despite these changes Cardpeek remained relevant due to its architectural flexibility.
The combination of PC/SC based communication, generic APDU handling, recursive TLV parsing, and script driven interpretation allows the software to adapt to new generations of cards without fundamental redesign.
Even when internal card structures become more opaque or security mechanisms become stricter, Cardpeek continues to function as a transparent observation layer.
It does not attempt to bypass modern protections but instead focuses on exposing whatever information is legitimately available through standard interfaces.
This makes it a long term analytical tool rather than a transient exploitation utility.
Its value lies in maintaining visibility across evolving smart card ecosystems rather than in targeting specific vulnerabilities or implementation flaws.
Future Direction and Architectural Limitations
Although Cardpeek has remained stable for many years, its architecture also reflects the era in which it was designed. Modern smart card ecosystems are increasingly moving toward highly isolated secure elements, cloud backed authentication, and hardware enforced cryptographic boundaries that expose far less internal structure through standard APDU interfaces.
This shift naturally limits how much visibility any logical analysis tool can provide. Cardpeek is still effective within the boundaries of PC/SC accessible communication, but it cannot overcome architectural decisions that intentionally hide internal state.
Another limitation is the dependency on external scripting knowledge. While Lua provides flexibility, it also places a burden on researchers to understand both protocol behavior and scripting structure simultaneously. In highly complex systems this can slow down the development of accurate parsers.
The graphical model, although intentionally lightweight, also does not scale to extremely large datasets or deeply interconnected multi application ecosystems in the same way modern data analysis frameworks might. Cardpeek prioritizes clarity over advanced visualization techniques.
Despite these constraints, the design philosophy remains consistent: provide direct, readable access to smart card communication without unnecessary abstraction layers.
Conceptual Role in Reverse Engineering Ecosystems
Cardpeek occupies a specific niche within the broader ecosystem of reverse engineering tools. It does not replace low level hardware analyzers, cryptographic research platforms, or full EMV simulation environments. Instead, it operates at a middle layer where communication visibility and structural interpretation intersect.
This position makes it especially useful during early and intermediate stages of protocol analysis.
At the beginning of a research workflow, Cardpeek helps establish a baseline understanding of how a card behaves. It reveals application structure, file hierarchies, and communication sequences.
During deeper analysis stages, it acts as a structured inspection tool where discovered behaviors can be validated, reproduced, and refined.
It is less suitable for exploitation research and more aligned with observational and interpretive work.
In practice, this means Cardpeek is often used alongside other specialized tools rather than replacing them.
Sustainability Through Minimal Core Design
One of the reasons Cardpeek has remained functional over time is its intentionally minimal core.
The communication engine is deliberately simple and relies on standardized system APIs. The parsing system delegates complexity to scripts. The graphical interface avoids excessive abstraction layers.
This reduces the maintenance burden significantly. Instead of constantly adapting a large monolithic architecture to new smart card standards, the system evolves primarily through script extensions.
This design choice also improves long term sustainability. Even if specific parts of the ecosystem become outdated, the core remains usable because it does not depend heavily on rapidly changing external components.
In many ways, Cardpeek represents a conservative software architecture approach applied to a highly specialized domain.
Practical Research Methodology Using Cardpeek
In real analytical workflows Cardpeek is rarely used in isolation. It typically serves as an exploratory interface during structured reverse engineering processes.
A common workflow begins with identification of available applications on the card. Once the system structure is mapped, researchers proceed to controlled APDU interaction sequences to observe behavior under different states.
Cardpeek assists by maintaining a complete trace of these interactions while simultaneously building a navigable interpretation model.
As understanding improves, Lua scripts are refined to reflect more accurate interpretations of the observed data. This iterative cycle continues until a stable model of the card’s internal structure emerges.
At this stage Cardpeek effectively transitions from a discovery tool into a validation environment where known structures can be repeatedly inspected under controlled conditions.
This workflow highlights its role as an interpretive bridge between raw communication and structured protocol understanding.
Final Architectural Perspective
From an architectural standpoint Cardpeek can be viewed as a three layer system.
The first layer is transport, responsible for communication with physical smart card readers through standardized system APIs.
The second layer is structure, responsible for organizing raw binary responses into hierarchical objects using generic parsing rules such as TLV decoding and file system reconstruction.
The third layer is semantics, implemented through Lua scripts that assign meaning to structured data and transform it into human readable representations.
The separation of these layers is what gives Cardpeek its flexibility. Each layer can evolve independently without breaking the others.
This modular decomposition is also what allows the tool to remain relevant despite the rapid evolution of smart card technology over time.
Official project page and source repository:
